Imitating Radiological Scrolling: A Global-Local Attention Model for 3D Chest CT Volumes Multi-Label Anomaly Classification

MIDL 2025 - Oral

Theo Di Piazza1,2 Carole Lazarus3 Olivier Nempont3 Loic Boussel1,2
1INSA Lyon, 2Hospices Civil de Lyon 3Philips Clinical Informatics
arXiv Code

Abstract

The rapid increase in the number of Computed Tomography (CT) scan examinations has created an urgent need for automated tools, such as organ segmentation, anomaly classification, and report generation, to assist radiologists with their growing workload. Multi-label classification of Three-Dimensional (3D) CT scans is a challenging task due to the volumetric nature of the data and the variety of anomalies to be detected. Existing deep learning methods based on Convolutional Neural Networks (CNNs) struggle to capture long-range dependencies effectively, while Vision Transformers require extensive pre-training, posing challenges for practical use. Additionally, these existing methods do not explicitly model the radiologist's navigational behavior while scrolling through CT scan slices, which requires both global context understanding and local detail awareness. In this study, we present CT-Scroll, a novel global-local attention model specifically designed to emulate the scrolling behavior of radiologists during the analysis of 3D CT scans. Our approach is evaluated on two public datasets, demonstrating its efficacy through comprehensive experiments and an ablation study that highlights the contribution of each model component.

Method

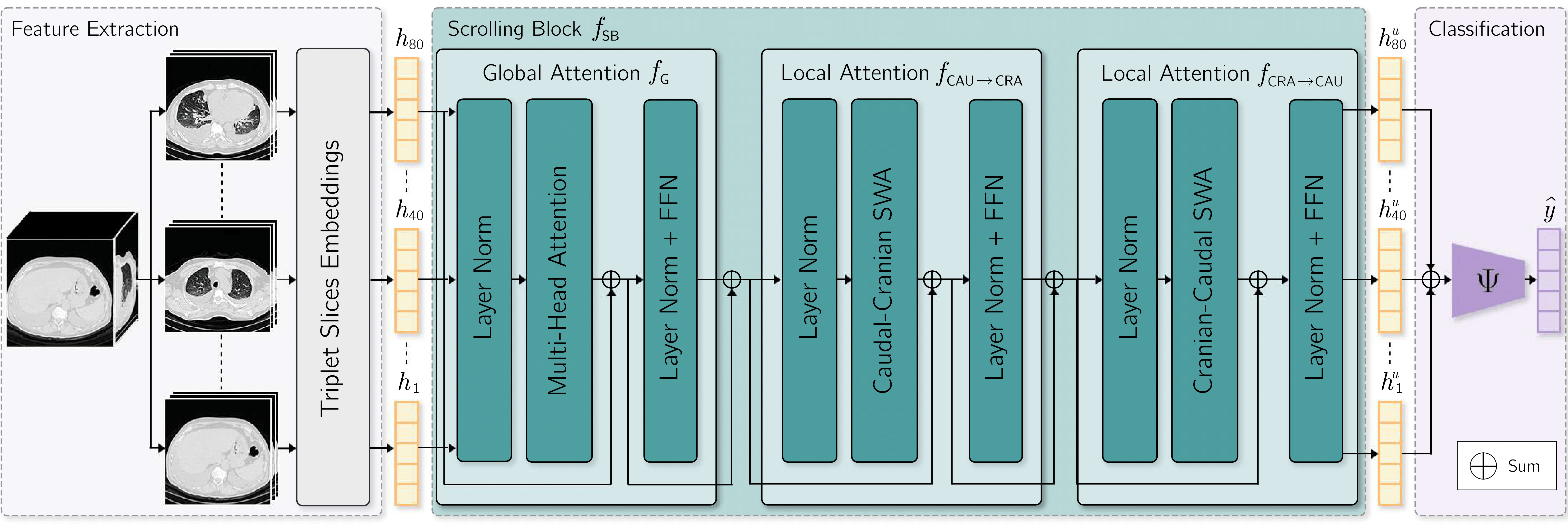

The CT-Scroll architecture consists of three main components. (1) Axial slices of the volume are grouped into triplets and processed by a ResNet followed by a GAP layer, producing a vector representation per triplet. (2) The Scrolling Block then refines these embedded visual tokens using both global and local attention mechanisms. (3) Finally, the aggregated features are fed into a classification head to predict abnormalities.

Main figure Main figure

Experiments

Models are trained and evaluated on CT-RATE across 5 independant runs, using train/validation/test patient-level splits (85/15). CT-RATE trained models are evaluated on the external RAD-ChestCT, focusing on the 16 abnormalities shared across datasets.

Quantitative results

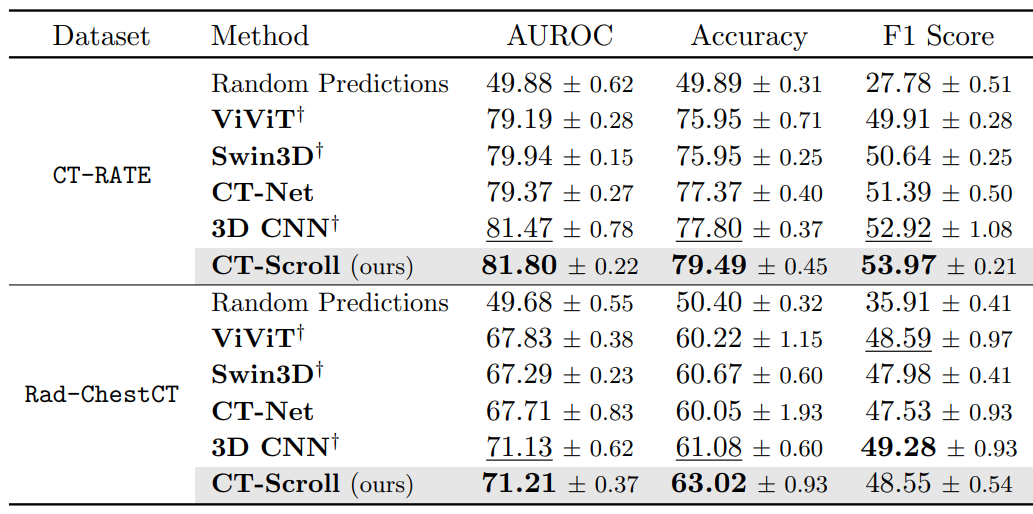

CT-Scroll is compared against attention-based visual encoders with ViViT and Swin3D. We also include convolutional backbones, including the 2.5D CT-Net and a volumetric convolutional neural network (CNN). All visual encoders are initialized using ImageNet pre-trained weights: we use a 2D ViT-S for ViViT, a 2D Swin-S for Swin3D and a 2D ResNet18 for CT-Net, 3D CNN and CT-Scroll We report AUROC, Accuracy and F1-Score on the multi-label abnormality classification task.

Quantitative results

Key findings:

In domain, CT-Scroll achieves the best results across all merics, demonstrating an improvement +5.02% in F1-Score over CT-Net. CT-Scroll demonstrates strong generalization under distribution shift, achieving the best AUROC and Accuracy on the external RAD-ChestCT.

Ablation study

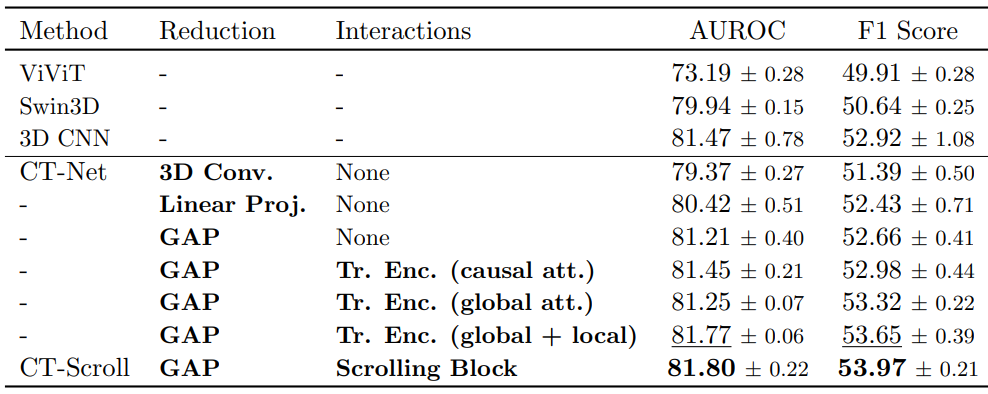

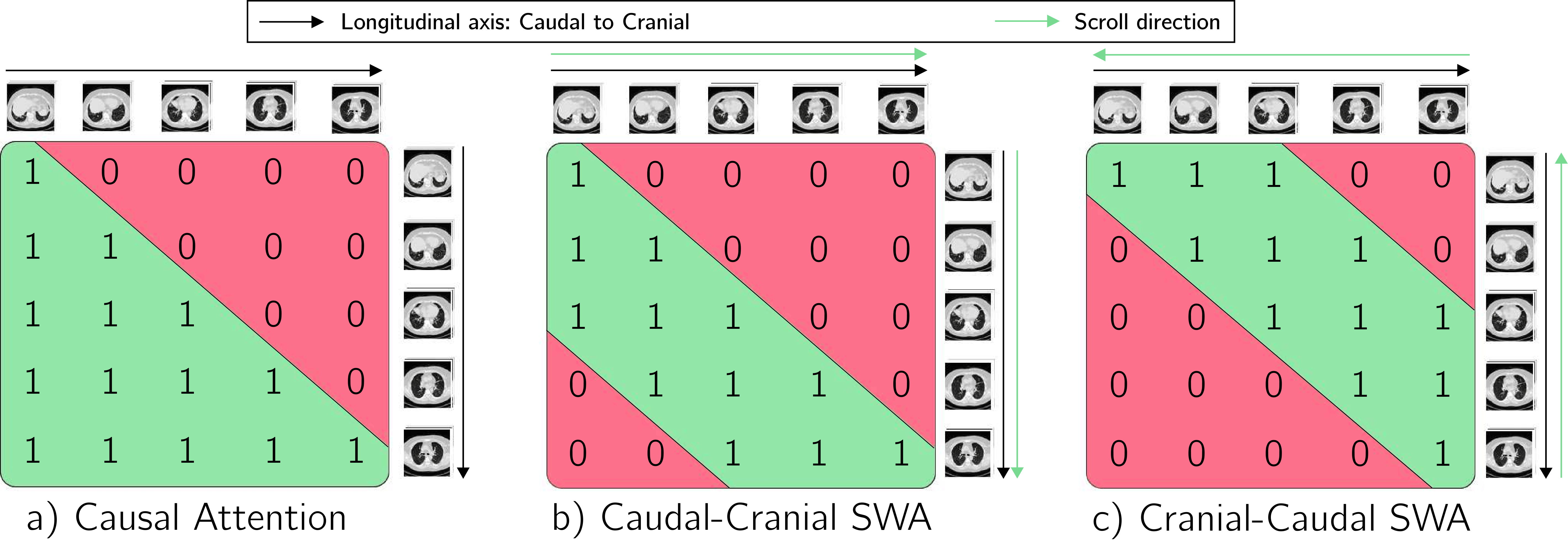

To evaluate the effectiveness of the proposed Scrolling Block, we compare its performance against various aggregation modules and masking strategies. For the aggregation modules, feature maps extracted from the 2D triplet-wise module are concatenated and given to i) a 3D convolutional neural network, ii) a linear projection and iii) a global average pooling operation over all dimensions. For the masking strategy, the causal-cranial and the cranial-caudal sliding windows attention are replaced by i) a causal attention mask, ii) a global attention mask, and iii) alternating global-local attention masks.

Qualitative results

Key findings:

The Scrolling Block consistently outperforms alternative aggregation modules. These results suggest that jointly modeling short- and long-range dependencies across triplets of axial slices through an attention-based mechanism improves the representation of both global context and fine-grained anatomical details, ultimately leading to superior classification performance.

Qualitative results

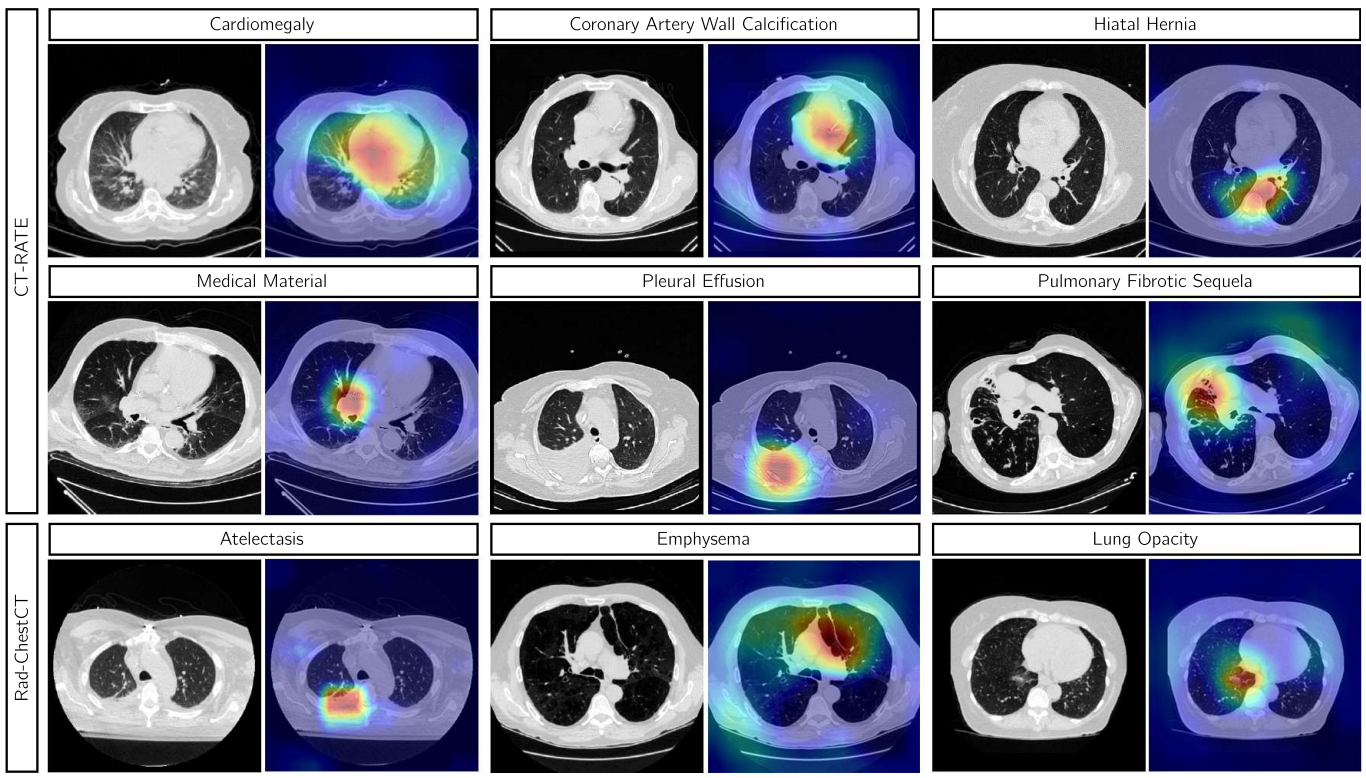

We further visualize CT axial slices using Grad-CAM activation maps extracted from the final layer of the 2D ResNet module within CT-Scroll. These results highlight CT-Scroll's ability to identify abnormalities from relevant regions.

Qualitative results

Related Links

In this work of academic research, our experiments are run on public Computed Tomography datasets. We acknowledge contributors from CT-RATE [1] and RAD-ChestCT [2] for releasing the datasets to the research community.

[1] Generalist foundation models from a multimodal dataset for 3D CT. Hamamci et al. 2026.

[2] Machine-learning-based multiple abnormality prediction with large-scale chest CT volumes. Draelos et al. 2021.

BibTeX

@article{dipiazza_2025_ctscroll,
  author    = {Di Piazza, Theo and Lazarus, Carole and Nempont, Olivier. and Boussel, Loic},
  title     = {Imitating Radiological Scrolling: A Global-Local Attention Model for 3D Chest CT Volumes Multi-Label Anomaly Classification},
  booktitle = {Medical Imaging with Deep Learning (MIDL)},
  year      = {2025},
}

More research

Explore additional recent work in medical image analysis related to this project.

Method 1

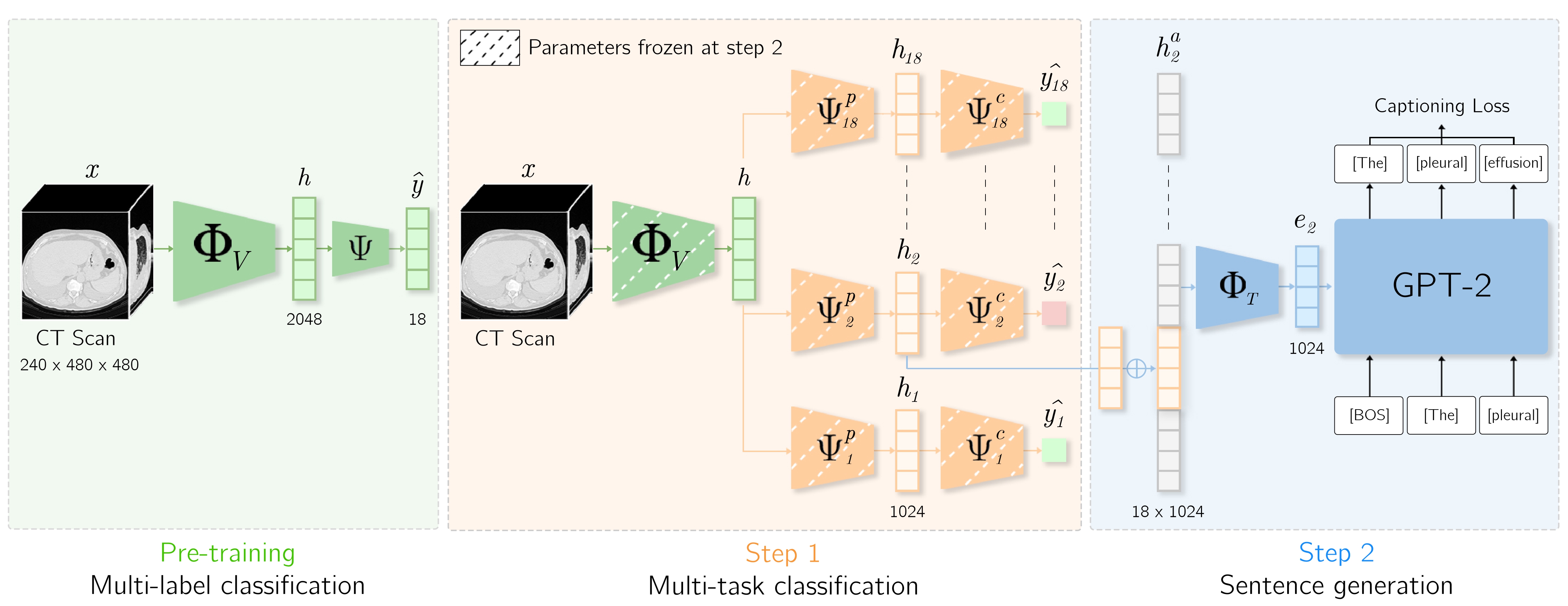

CT-AGRG
ISBI 2025
Report generation

Method 1

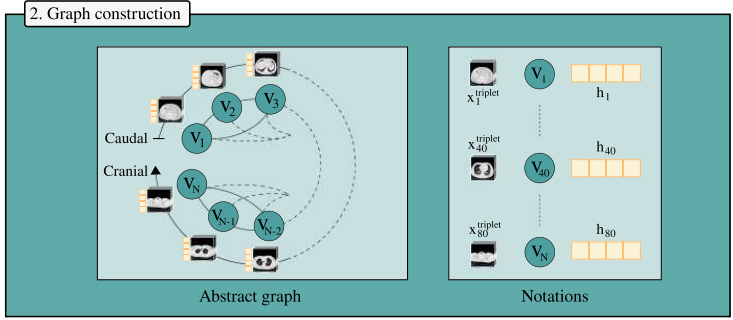

CT-SSG
MELBA Journal 2026
Graph representation learning

Method 1

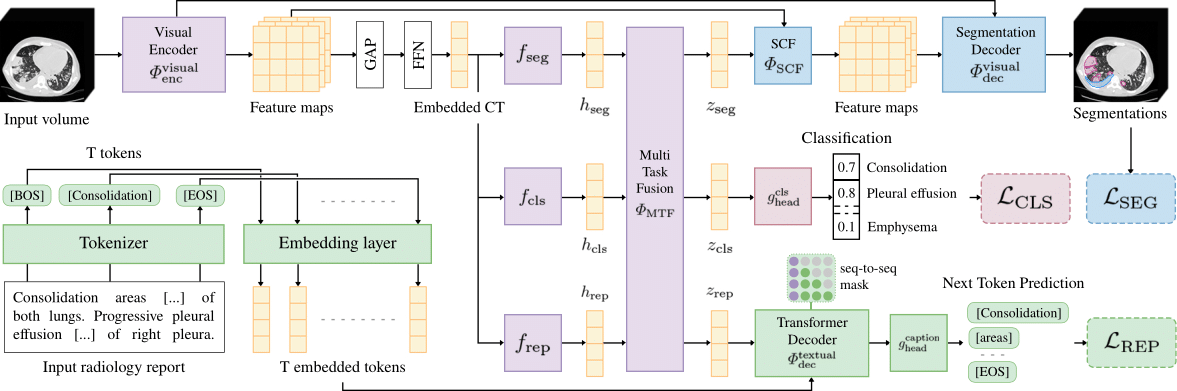

UniCT
